Box Cassette Retractable Awning
A slim, geometric cassette awning built for modern homes and commercial facades. The aluminium box shelters the fabric and folding arms when closed, so there is nothing left on show except a clean profile above your terrace.
- Up to 600cm
- Maximum width
- Up to 310cm
- Maximum projection
- 5° to 50°
- Tilt angle range
- 150+
- Fabric designs
Madeira Box Cassette Awning
Madeira Box Cassette Awning product summary.
Box Cassette RAL Colours
Standard frame colours available for the Box Cassette awning, at no extra cost.
Choose one of these RAL colours for your frame and cassette.
RAL 9010 MATT - White
RAL 1015 MATT - Beige
RAL 9006 MATT - Silver
FSM 71319 MATT - Graphite
RAL 8014 MATT - Brown
RAL 7016 STR - Anthracite Grey
RAL 9005 STR - Black
Other RAL colours are available on request for a surcharge. Contact us for details and pricing.
Sizes at a glance
Made to measure up to 600cm wide
Custom widths from 205cmup to 600cm with projection arms from 160cm, 210cm, 260cm, 310cm, and 3.6m on request, and a tilt angle adjustable between 5° and 50° to throw the shade exactly where you want it. Send us your wall width and the projection you need and we will confirm the best configuration for your space.
Features
Made exactly for your space
- Available with a Somfy electric remote control motor as standard, with an emergency manual crank that lets you retract the awning during a power cut for added protection.
This model is not available in a manual winder only option. - The motor can be fitted on the right or left of the awning for your convenience.
- LED lighting integrated into the underside of the cassette cover profile as standard, so you can enjoy the terrace after dark.
- The enclosed cassette protects the fabric against sun and weather while the awning is retracted.
- Folding arms reinforced with a chain-driven system for smooth, stable operation even on wide awnings with a large projection.
- Extruded aluminium structure on a square support beam for extra stability and straightforward installation.
- Cassette and Frame available in up to 7 different RAL colours, including textured and special finishes at extra cost.
- Choose from over 150 water repellent acrylic fabric designs, with waterproof fabric options available.
- Optional Somfy Wireless Wind Sensor available.
- Nationwide fitting service by our experienced fitters.
- We accept surveys from all over the country via email to sales@awningsdirect.ie or via WhatsApp — just attach photos and measurements in CM’s, and tell us your name, the area you live in, your email address and phone number, and we will get back to you with options and prices.
our box cassette model
Box Cassette highlights

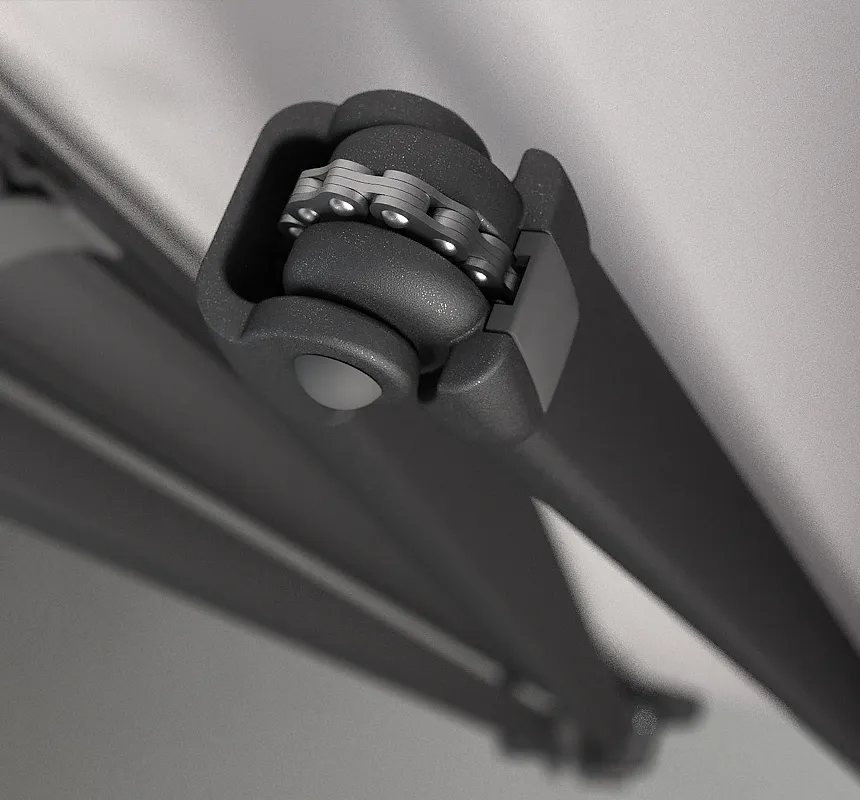

Chain-reinforced folding arms
A chain-driven arm system keeps operation smooth and stable, even on wide awnings with a large projection.

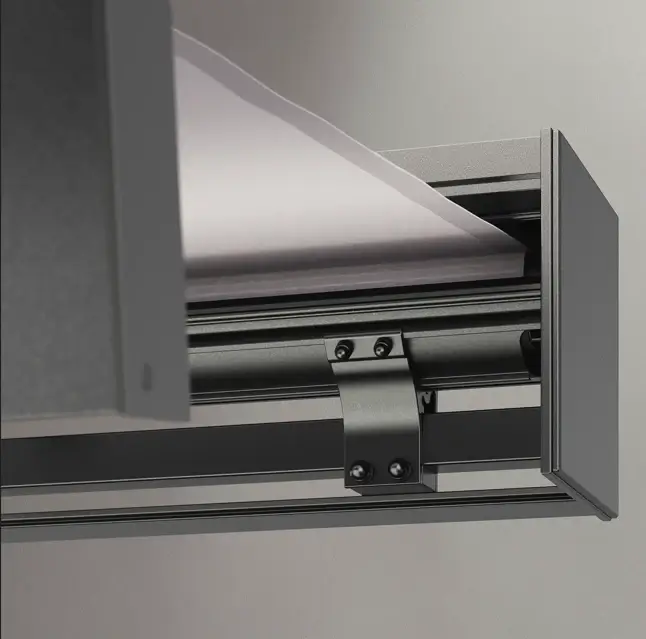

Integrated LED lighting
LED lighting built into the underside of the cassette comes as standard, so warm evenings on the terrace do not end at dusk.

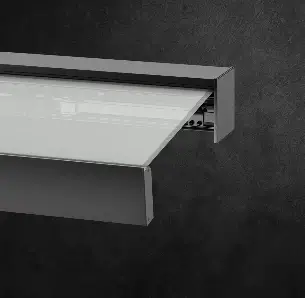

Protected fabric
The enclosed cassette shields the fabric from sun and showers whenever the awning is retracted.
Drive options
Somfy electric remote control motor with manual winder override in case of a power cut as standard, with optional wireless wind sensor. This model is not available with a manual winder only option.
Colours and fabrics
Frame colours
The aluminium frame is powder coated in a wide choice of RAL colours, including textured finishes, with special colours available at extra cost.
150+ acrylic fabric designs
Choose from plain, striped and patterned acrylic fabrics in a full spread of colours, each rated for UV protection and heat reduction.
Waterproof fabric options
For extra peace of mind in Irish weather, waterproof fabric versions are available with a special impregnation that keeps the rain out.
An extra cost applies.
Complete the setup with a patio heater
Stay warm and use your awning long into the evening with our wall-mounted electric infrared patio heaters.
Send us your measurements for a quick quote
Email photos and measurements in centimetres with your location and phone number, and we will advise on the best option for your space.
